CathCAD®

We also offer CathCAD® – The Software for Designing your Next MicroCatheter. CathCAD® includes a comprehensive materials and braid wire database hosted on a MySQL server. The base materials library includes 24 materials including Polyimide, PTFE, PEEK, FEP, ETFE, PeBax, Polyurethanes, and Polyethylene (LDPE, MDPE, and HDPE). The software will model Extrusion AND Film Cast materials as well as combinations, that is, the software modelling capabilities is process independent.

The base CathCAD® outputs include flexural (EI), longitudinal (EA), and torsional rigidities (GJ).

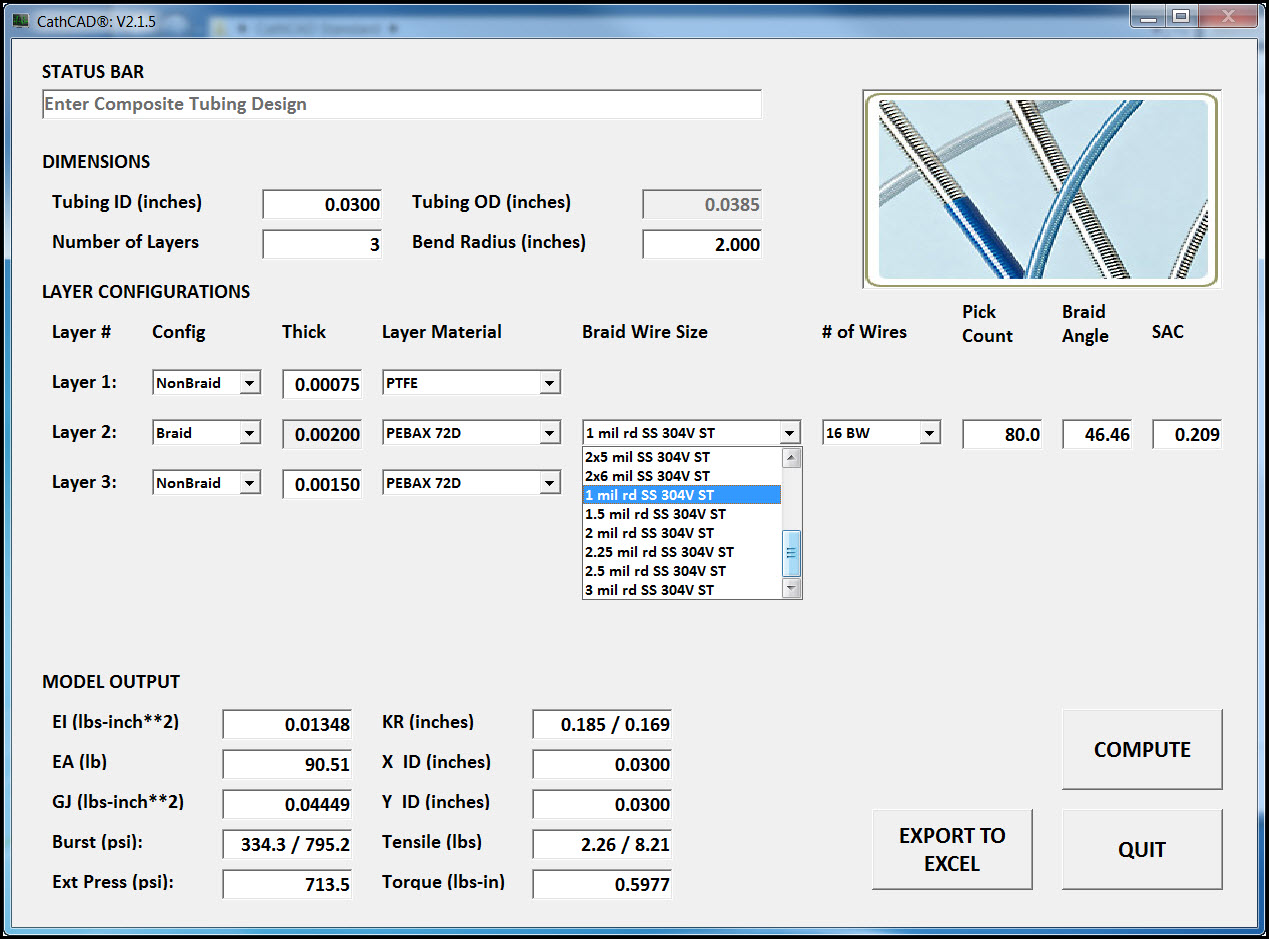

11-14-2015 2-19-09 PM

FAILURE MODE ANALYSIS

The software computes the buckling kink radius as well as the elliptical shape of the lumen at a given bend radius. CathCAD® V2.0 includes estimates of tensile strength, torsional stiffness, burst pressure, as well as an improved kink radius algorithm suitable for use for thicker wall composite tubing.

Visit our website at www.cathcad.com for more information. Email sales@cathcad.com to receive information about the CathCAD® product offering, demo/to receive your account access code, and licensing fees.

Discover the advantages of using CathCAD®!
