MeasureOD® FlawDetect
Detect and count lumps and neckdowns in wire and tubing. Set defect criteria for your application.
Laser and optical micrometer software
Turn diameter readings into process insight.
MeasureOD® brings production measurements, global and local graphs, real-time statistical analysis, and Excel reporting into a common interface.
Windows 10 and Windows 11 · One-time purchase · No recurring subscription
Production measurement
Follow the process from live readings to reports

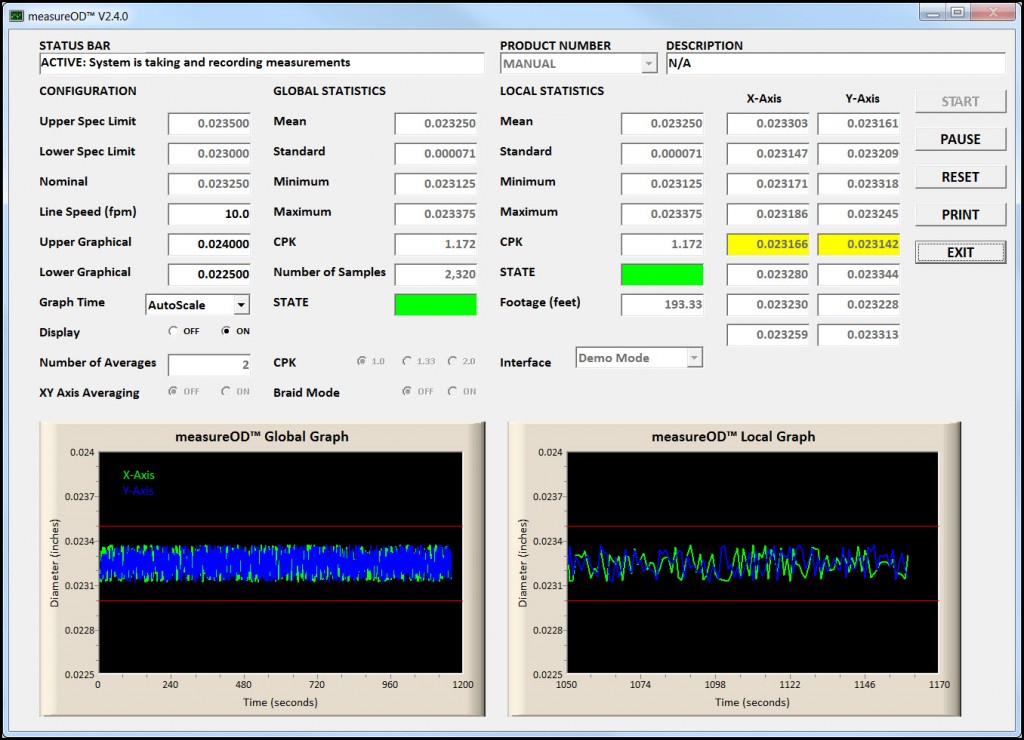

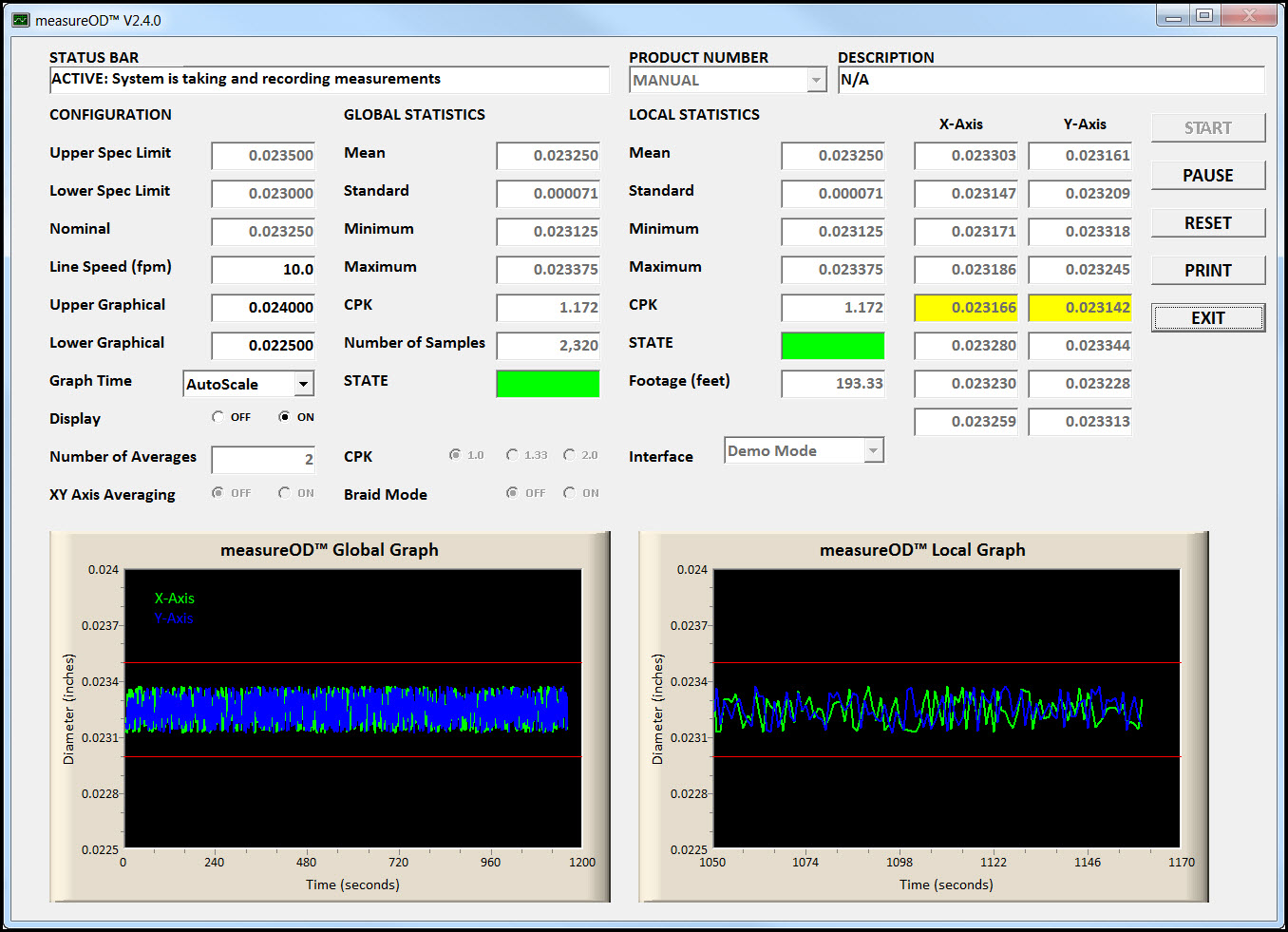

Global and local measurement graphs
Review time-domain measurements across the complete dataset and within a local window.
Real-time statistical analysis
See global and local statistics alongside the measurement trends.
Ready-to-print Excel export
Export measurements to Microsoft Excel for review, reporting, and printing. View sample exports.
RT Automation tower light support
Connect the tower light system and MeasureOD® automatically recognizes the connected unit.
Hardware compatibility
A common interface for supported micrometers
Tell us your controller and measurement-head model so we can confirm the right setup.
- Keyence LS7601 and LS9501 series controllers with connected optical measurement systems.
- Zumbach ODAC 18XY and ODAC 13TRIO systems using the supported serial interface.
- LaserLinc TotalVu systems.
See MeasureOD in use
Software demonstration
The MeasureOD family
Choose the tools for your application
Standard MeasureOD® covers outside diameter measurement and SPC. Explore the specialized versions below.
MultiWire MeasureOD®
Measure one to six wires simultaneously with compatible Keyence hardware.
Edge Measurement MeasureOD®
Inspect effective cutting tool diameter and runout on drills, end mills, and reamers.
MeasureOD® PID
Combine diameter measurement with PI feedback control and RTA-550 outputs for extrusion feeders and pullers.
License pricing
MeasureOD® software prices
One-time license. No recurring subscription. Measurement hardware is sold separately.
MOD-STD-001
MeasureOD® Standard
Outside diameter measurement, graphs, statistics, and Excel reporting.
$1,495
MOD-EM-001
Edge Measurement MeasureOD®
Effective cutting-tool diameter and runout measurement.
$1,995
MOD-FD-001
MeasureOD® FlawDetect
Lump and neckdown detection for wire and tubing.
$1,995
MOD-MW-001
MultiWire MeasureOD®
Simultaneous measurement of one to six wires.
$2,495
MOD-PID-001
MeasureOD® PID
Diameter measurement with PI feedback control.
$2,995
Online payment is being set up. In the meantime, contact sales@mcerberus.com to place an order or submit a purchase order.
Product information
Brochures
Standard MeasureOD® brochure (PDF)
The product cards above include the FlawDetect, MultiWire, Edge Measurement, and PID brochures.
Tell us what you need to measure
Include your diameter range, line speed, measurement hardware, and application. We’ll help confirm compatibility and discuss the software setup.
